Home > Forged Fittings > Stainless Steel 310/310S Forged Fittings
Operating out of the heart of Kinshasa, Sadiki Metals stands as a dedicated partner to the region’s growing industrial sector, bringing reliable and high-performance solutions directly to our doorstep. We are proud to supply and manufacture Stainless Steel 310/310S Forged Fittings, components engineered to meet the rigorous demands of Congo’s diverse projects. Our commitment is to provide not just a product, but a foundation of quality and durability that our local industries can build upon with absolute confidence.
The strength of these fittings comes from a specific composition, primarily a high chromium and nickel content, which gives them an exceptional resistance to oxidation and corrosion. This alloy is designed to perform under stress, maintaining its structural integrity in high-temperature environments where other materials might fail. Essentially, they are built to withstand intense heat and corrosive atmospheres, offering a reliable and long-lasting performance that is crucial for critical applications.
Specifications : ASTM A182 & ASME SA182
Standard : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size : 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type : Socketweld Fittings, Screwed-Threaded Fittings
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 310 | 0.015 max | 2.0 max | 0.15 max | 0.020 max | 0.015 max | 24.00 – 26.00 | 0.10 max | 19.00 – 21.00 | 54.7 min |
| SS 310S | 0.08 max | 2.0 max | 1.00 ma | 0.045 max | 0.030 max | 24.00 – 26.00 | 0.75 max | 19.00 – 21.00 | 53.095 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1402 °C (2555 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
Contact us to get a quick quote for your requirement.
We ensures that it has the high quality standards with respect to Stainless Steel 310/310S forged fittings by using rigorous testing and certification processes. Every product under goes detailed check-up including dimensional checks, mechanical property tests, and assessment of corrosion resistance. Our fitting is certified for relevant industry standards, which guarantees superior performance and reliability across various applications.

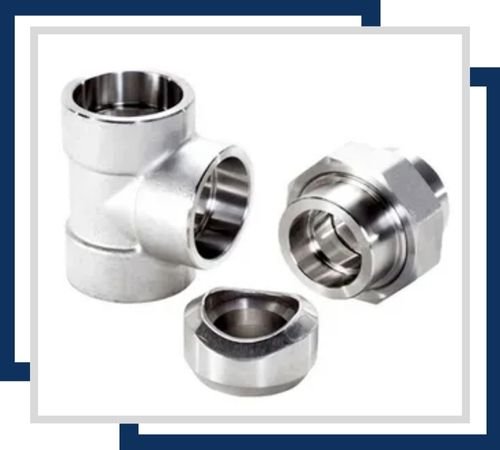

These fittings are highly resistant to oxidation and corrosion at elevated temperatures. They are designed for high-pressure applications and come in various sizes typically ranging from 1/2 inch to 4 inches. Socket weld fittings are ideal for applications requiring a strong, leak-proof connection.

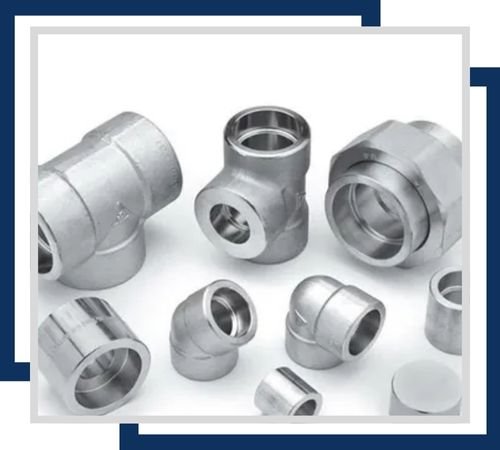

Threaded fittings in SS 310 offer excellent resistance to oxidation and corrosion, especially in high-temperature environments. Sizes generally vary from 1/8 inch to 4 inches. They are used for connecting pipes with threads, making them suitable for pressure-tight joints.

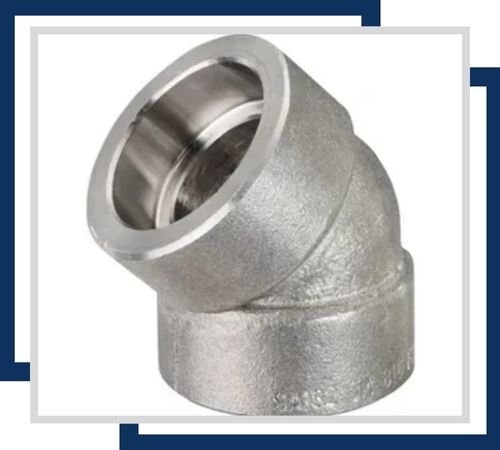

These elbows provide excellent corrosion resistance and are ideal for applications involving high temperatures. They are available in sizes from 1/2 inch to 4 inches and are used to change the direction of flow in piping systems by 45 degrees.

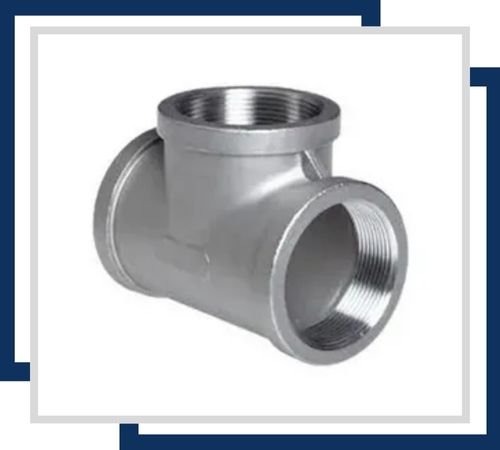

Threaded tees made of SS 310 exhibit superior resistance to high-temperature oxidation and corrosion. Common sizes range from 1/4 inch to 4 inches. These tees are used to branch out pipelines and provide a secure connection in high-pressure systems.

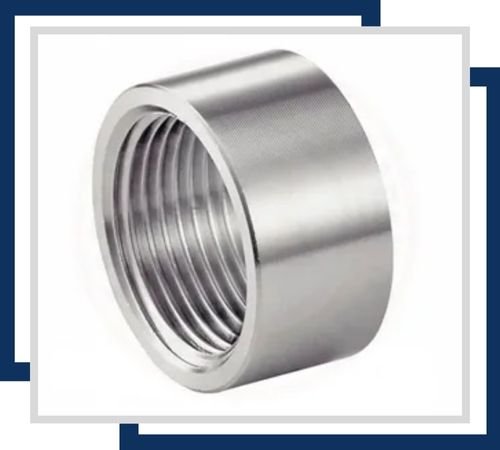

Offering excellent corrosion resistance, threaded half couplings are used to connect two pipes in high-temperature applications. Sizes typically range from 1/8 inch to 4 inches. They are ideal for creating a connection in the middle of a pipe.

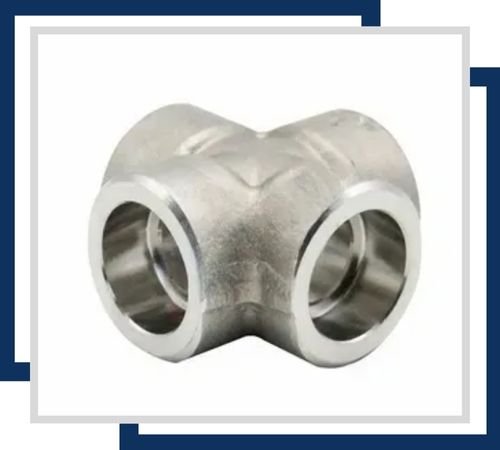

Socket weld crosses in SS 310S provide high resistance to oxidation and are used in high-pressure systems. They are available in sizes from 1/2 inch to 4 inches and allow for the intersection of four pipes, ensuring a robust connection.
These properties make the 310/310S fittings indispensable in sectors where failure is not an option. You will find them at the core of Kinshasa’s thermal processing plants, within high-temperature piping systems, and in crucial furnace components. They are equally vital in the petrochemical industry and power generation facilities, handling extreme heat and aggressive chemicals. By choosing these fittings, industries across Congo are investing in the safety, efficiency, and longevity of their most demanding operations.
