Home > Electrodes > AWS Class ER410NiMo Mig & Tig Filler Welding Wire & Rod
Mbemba Stainless is a reputable manufacturer and supplier located in Kinshasa, Congo, specializing in high-quality AWS Class ER410NiMo MIG and TIG Filler Welding Wire and Rod. These filler materials are expertly designed for welding martensitic stainless steels, providing outstanding strength, corrosion resistance, and toughness. At Mbemba Stainless, they prioritize precise manufacturing, consistent composition, and compliance with international standards, ensuring that their welding solutions are both reliable and durable. Their AWS Class ER410NiMo wires and rods deliver smooth arc stability, minimal spatter, and robust, crack-resistant welds, making them perfect for critical applications in sectors like petrochemical, power generation, marine, and industrial machinery.
The AWS Class ER410NiMo MIG and TIG Filler Welding Wire and Rod are primarily made up of chromium, nickel, and molybdenum, which significantly boosts corrosion resistance, toughness, and high-temperature strength. This alloy boasts a tensile strength of around 600–650 MPa and good ductility, making it well-suited for challenging service conditions. The filler metal guarantees smooth arc performance, minimal spatter, and clean bead formation, resulting in durable welds that excel in resisting oxidation, intergranular corrosion, and wear. Its well-balanced composition allows for post-weld heat treatment, achieving optimal hardness and mechanical properties.
| Classification | AWS A5.9, ER410NiMo |
| Form | MIG spools, TIG cut lengths, Reels and Coils |
| Type Of Welding | Inert Gas Welding |
| Current | MIG-DCEP / TIG-DCEN |
| Diameters | .023”, .030”, .035”, .045”, 1/16”, 3/32”, 1/8” |
| Standard TIG straight lengths are available | 36” (914 mm) or 39” (1000 mm) lengths. Other lengths available upon request. |
| AWS ER410NiMo MIG & TIG Filler Metal Application & uses |
|
| C | Cr | Ni | Mo | Mn | Si | P | S | Cu |
| 0.06 | 11.0-12.5 | 4.0-5.0 | 0.4-0.7 | 0.6 | 0.5 | 0.03 | 0.03 | 0.75 |
| Yield, kpsi: | 92 |
| Tensile Strength, kpsi: | 118 |
| Elongation%, min: | 20 |
Contact us to get a quick quote for your requirement.
ER410NiMo MIG filler wire provides enhanced toughness and corrosion resistance, ideal for welding high-stress components and tools, ensuring strong, durable welds in demanding environments.

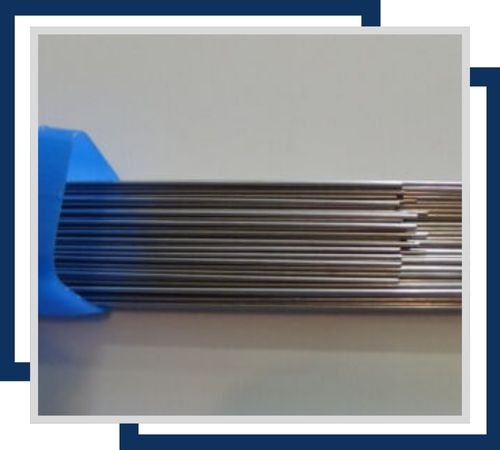

ER410NiMo TIG filler wire offers superior toughness and resistance to corrosion, suitable for welding martensitic stainless steels in applications requiring high durability and performance under stress.

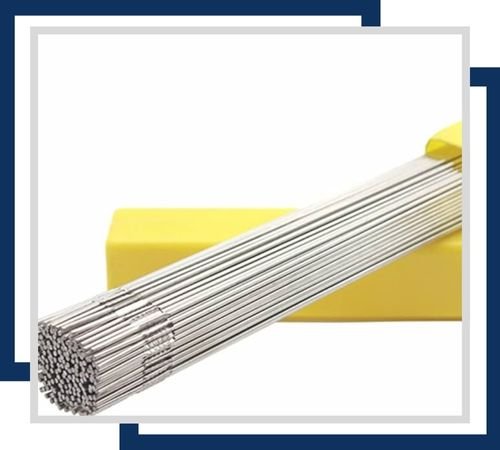

ER410NiMo TIG filler rod delivers excellent toughness and resistance to corrosion, ideal for welding components exposed to high temperatures and severe conditions, ensuring durability and strong welds.
After manufacturing our quality control team conducts a series of destructive and non-destructive tests. Using advanced tools to make sure the performance and reliability of the AWS Class ER410NiMo MIG and TIG Filler Welding Wire and Rod. We then package the products securely and ensure timely delivery to customers providing all necessary documentation at the time of delivery to assure complete transparency.
These AWS Class ER410NiMo MIG and TIG Filler Welding Wire and Rod are commonly used for welding martensitic stainless steels in applications that demand high strength, corrosion resistance, and toughness. Typical applications include the fabrication and repair of turbines, pumps, valves, shafts, structural components, and heat-resistant equipment in power plants, petrochemical facilities, and industrial machinery. They are also suitable for marine applications and other environments where resistance to high temperatures, wear, and corrosion is essential. With their excellent weldability, mechanical performance, and reliability, these fillers are perfect for demanding fabrication tasks.
