Home > Forged Fittings > Stainless Steel Forged Fittings
Mbemba Stainless is a well-respected manufacturer and supplier located in Kinshasa, Congo, known for its top-notch Stainless Steel Forged Fittings. The company is committed to delivering durable, high-performance fittings that can handle high-pressure and high-temperature applications. Using cutting-edge forging technology and premium stainless steel, these fittings guarantee exceptional strength, tight seals, and resistance to corrosion. Mbemba Stainless caters to a variety of industries, including oil and gas, chemical processing, power generation, and marine engineering, providing reliable and efficient connection solutions that adhere to international quality standards and ensure long-lasting operational performance.
These Stainless Steel Forged Fittings are crafted from high-quality stainless steels like SS 304, SS 304L, SS 316, and SS 316L, which are enhanced with chromium, nickel, and molybdenum to boost their resistance to corrosion and oxidation. They boast impressive mechanical properties, such as high tensile and yield strength, outstanding hardness, and remarkable toughness even in extreme conditions. These fittings maintain their structural integrity and performance under high pressures and temperatures, offering exceptional resistance to pitting, stress corrosion, and general wear, which ensures they last a long time and remain reliable.
| Specifications | ASTM A403/ ASME SA403 |
|---|---|
| Size | Seamless Butt Weld Fittings : 1/2″ – 10″ Welded Butt Weld Fittings : 1/2″ – 48″ |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni |
| Stainless Steel Forged Fittings | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
We ensures that all stainless steel forged fittings undergo rigorous testing to ensure quality, strength and durability. Each product is thoroughly inspected using advanced techniques such as dimensional testing, pressure testing and material analysis. The company offers a full range of certifications, including ASTM, ISO, and other industry standards, assuring reliable and compliant fittings.

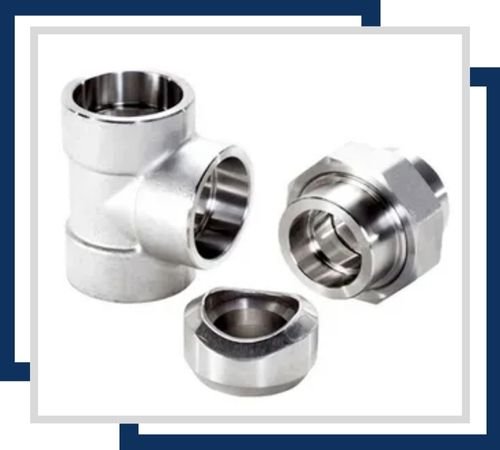

Corrosion-resistant and durable, these fittings are ideal for high-pressure applications. They are typically available in sizes ranging from 1/8 inch to 4 inches, with dimensions conforming to ANSI B16.11 standards, ensuring a secure and leak-proof connection.

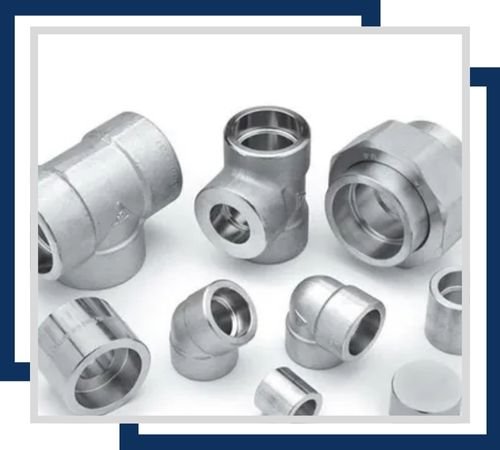

These fittings offer excellent corrosion resistance and are suitable for moderate to high-pressure applications. Sizes range from 1/8 inch to 6 inches. They conform to ASTM A105 or A182 standards, providing reliable connections with threaded ends for easy installation.

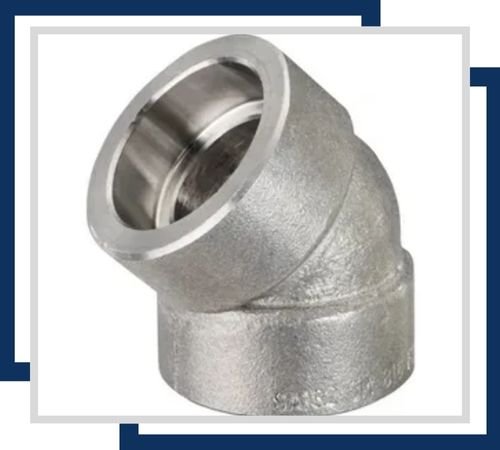

Designed for high-pressure systems, these elbows provide corrosion resistance and are available from 1/2 inch to 4 inches. They are made to ANSI B16.11 specifications, facilitating smooth directional changes in piping systems with minimal pressure loss.

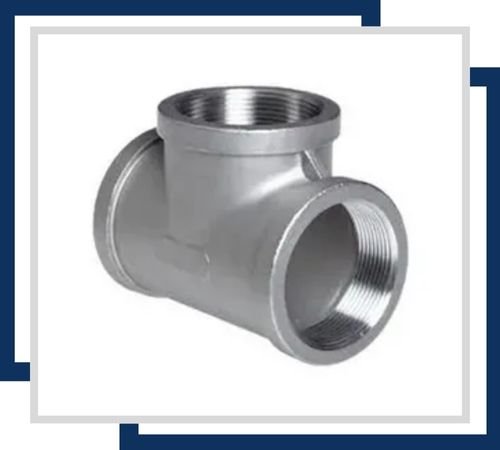

Corrosion-resistant and versatile, threaded tees come from 1/8 inch to 6 inches. They adhere to ASTM standards, enabling the branching of pipes at a 90-degree angle while ensuring a secure and leak-free connection for various piping systems.

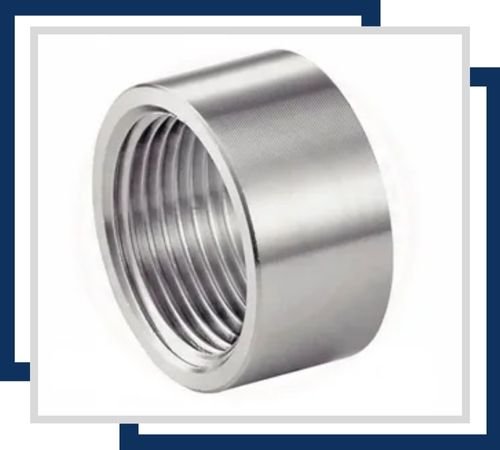

Half couplings are available in sizes from 1/8 inch to 6 inches, offering corrosion resistance and strength. They conform to ASTM A105 or A182 standards and are used to connect pipes or tubes, providing a reliable interface in threaded applications.

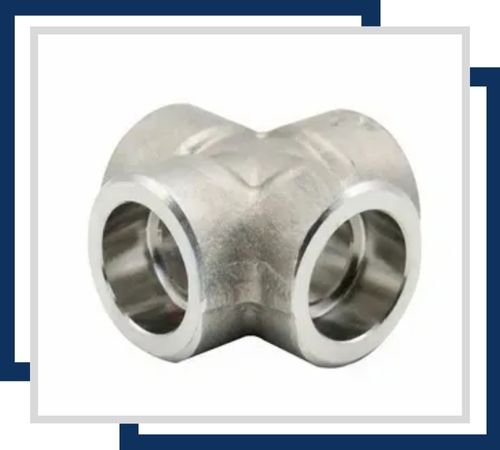

These fittings, resistant to corrosion and high-pressure environments, are available in sizes from 1/2 inch to 4 inches. They meet ANSI B16.11 standards and provide four-way connections, enabling the branching of pipes in multiple directions within a system.
Stainless Steel Forged Fittings are commonly used in industries that require secure and leak-proof piping connections. They play a crucial role in oil and gas refineries, chemical plants, power generation facilities, and marine systems. These fittings are essential for connecting pipes, valves, pumps, and other equipment in high-pressure or corrosive environments. Their impressive strength and resistance make them perfect for hydraulic and steam systems, as well as for water treatment and petrochemical applications. With their sturdy construction, they ensure efficient fluid flow, safety, and long-term performance in demanding industrial conditions.
