Home > Forged Fittings > Stainless Steel 316/316L Forged Fittings
Nestled in the heart of Kinshasa, Sadiki Metals has built a reputation as a trusted local source for industrial excellence. We specialize in providing robust and reliable Stainless Steel 316/316L forged fittings, engineered to meet the demanding challenges of the Congolese market and beyond. Our commitment is to deliver not just a product, but a promise of durability and performance, supporting the growth and integrity of critical projects across the region with components you can depend on.
The strength of these fittings begins with their core composition, a precise blend of chromium, nickel, and molybdenum that grants them a well-known resistance to corrosion, particularly against chlorides and acids. This chemistry translates into impressive mechanical properties, including high tensile strength and excellent toughness, even in elevated temperature environments. The forging process itself further enhances these qualities, creating a dense, uniform grain structure that ensures superior integrity and longevity under significant pressure and stress.
Specifications ASTM A182 & ASME SA182
Standard ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type Socketweld Fittings, Screwed-Threaded Fittings
Forged Fittings Items 45 Deg Elbow, 90 Deg Elbow, Forged Tee, Union, Full Coupling, Half Coupling, Cross, Cap, Swage Nipple, Plug, Bush, Welding Boss, Hexagonal Nipple etc.
Type Socketweld Fittings, Screwed-Threaded Fittings
Grade 316 / 316L UNS (S31600, S31603), DIN (1.4401 / 1.4436, 1.4404 / 1.4435)
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 67.845 min |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316/ | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| SS 316L | 1399 °C (2550 °F) |
Contact us to get a quick quote for your requirement.
We ensures Stainless Steel 316/316L Forged Fittings of the highest quality. The products that leave our portal are all tested dimensionally, mechanically and chemically so as to guarantee performance and durability. We provide complete certifications in the form of material certificates and testing reports. All those cross international standards for all our customers’ satisfaction.

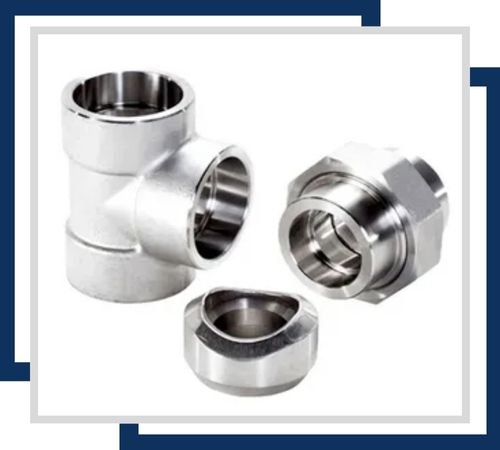

These fittings are available in various sizes, typically from 1/8″ to 4″ in diameter. They are designed for high-pressure applications and provide excellent resistance to corrosion, especially in marine environments.

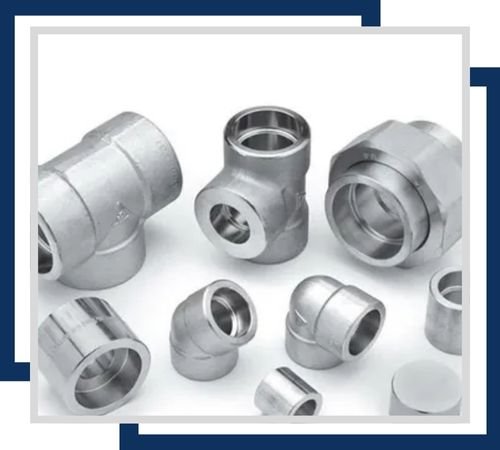

Threaded fittings come in sizes ranging from 1/8″ to 6″. They offer superior corrosion resistance and are ideal for use in aggressive environments such as chemical processing and marine applications.

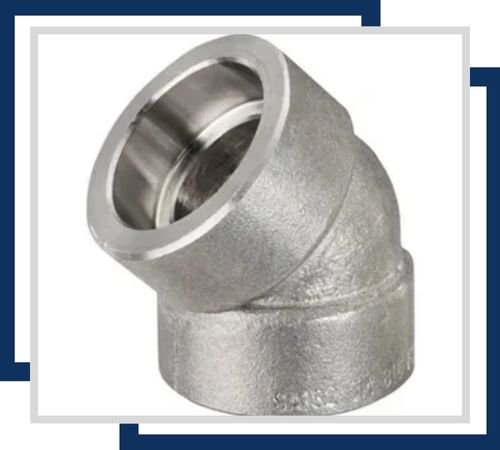

This elbow fitting is commonly available in sizes from 1/2″ to 4″. It facilitates smooth flow changes and resists corrosion effectively, making it suitable for high-pressure and high-temperature systems.

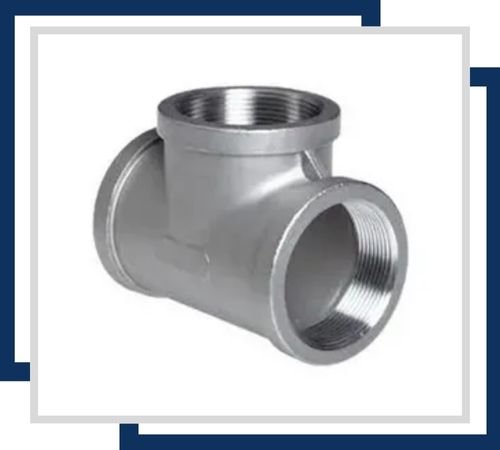

Threaded tees are available in sizes ranging from 1/8″ to 6″. They are used to connect three pipes at a junction and offer excellent resistance to corrosion and high temperatures.

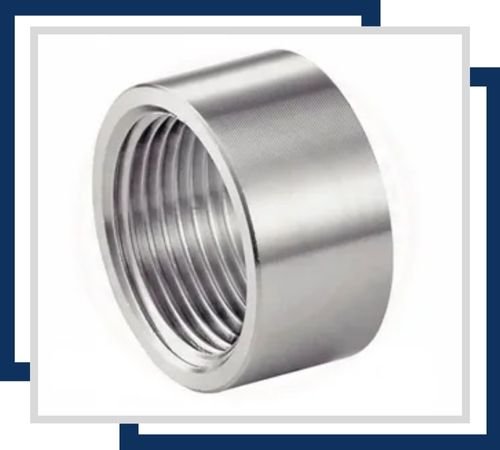

This fitting is typically available in sizes from 1/8″ to 4″. It is used to connect a pipe to another fitting or equipment and provides high resistance to corrosion and wear.

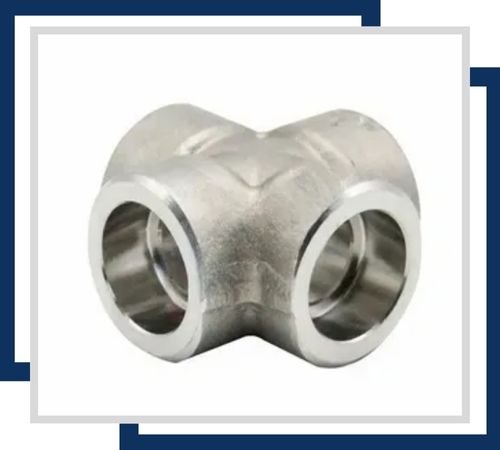

Available in sizes from 1/2″ to 4″, the socket weld cross is used to connect four pipes at right angles. It offers excellent corrosion resistance and is suitable for high-pressure applications.
The versatility of 316/316L forged fittings makes them indispensable across a wide spectrum of industries. They are the preferred choice for constructing robust piping systems in chemical and petrochemical plants, where they safely handle aggressive media. You’ll also find them ensuring purity in food and pharmaceutical processing, providing structural support in marine and offshore applications, and forming the backbone of critical systems in power generation and water treatment facilities. Their reliability is crucial wherever corrosion resistance and structural integrity are non-negotiable.
