Strategically located in the heart of Kinshasa, Mbemba Stainless stands as a trusted partner for industry, dedicated to supplying robust and reliable materials. We take pride in providing high-grade Stainless Steel 316H Forged Fittings, engineered to meet the demanding challenges of modern infrastructure and processing. Our commitment is to support the growth and durability of projects across the Congo and beyond with components that offer exceptional strength and longevity, ensuring our clients can build with confidence and foresight.
The composition of 316H includes a higher carbon content than standard 316, which gives these fittings their enhanced strength, particularly at elevated temperatures. This austenitic stainless steel is also alloyed with chromium, nickel, and molybdenum, providing excellent resistance to corrosion and oxidation. The forging process further refines the material’s grain structure, resulting in superior mechanical properties, including high tensile strength and excellent toughness, making these fittings capable of withstanding significant pressure and stress.
| Standard | ASTM A182 / ASME SA182 |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316H | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
We ensures the highest standards for our stainless steel 316H lattice fittings through rigorous testing and certification. Each device undergoes extensive testing, including tensile, hardness and corrosion resistance tests. We offer certificates of compliance, ensuring our fittings meet international industry standards for reliability and performance.

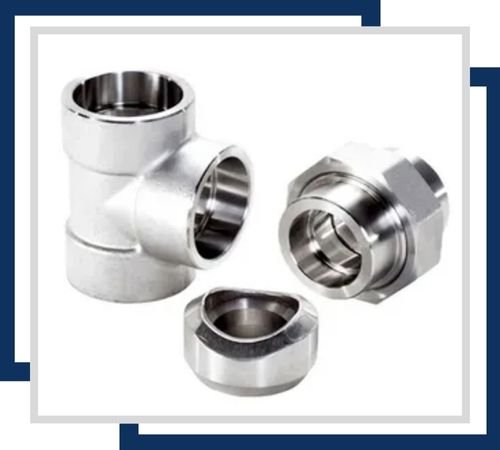

Corrosion-resistant and highly durable, Stainless Steel 316H Socket Weld Fittings are used for high-pressure applications. Sizes typically range from 1/4″ to 4″ in diameter. These fittings are designed for a strong, leak-proof connection in piping systems.

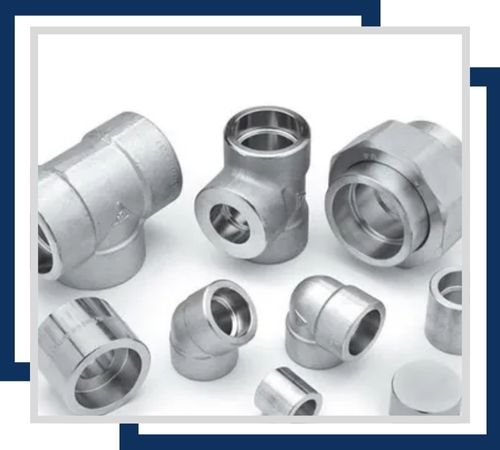

Offering excellent resistance to corrosion and high temperatures, Stainless Steel 316H Threaded Fittings are ideal for various industrial applications. They come in sizes from 1/8″ to 6″. These fittings provide easy installation and maintenance with threaded connections.

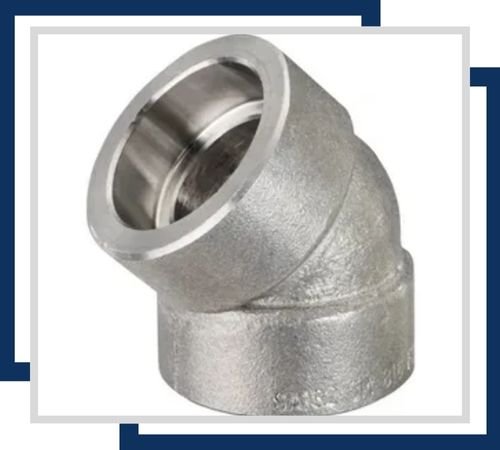

The Stainless Steel 316H Socket Weld 45 Degree Elbow combines corrosion resistance with high strength, allowing smooth changes in direction. Typically available in sizes from 1/4″ to 4″, it ensures reliable performance under high-pressure conditions.

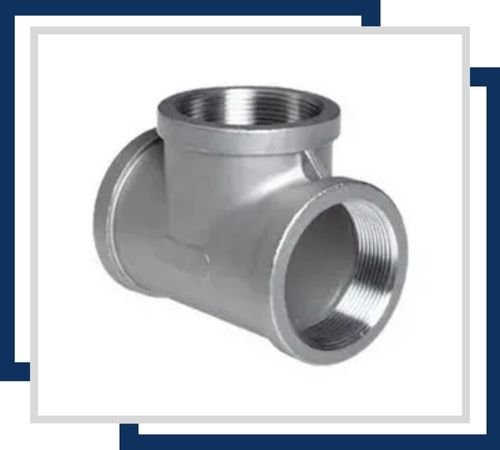

Featuring excellent resistance to corrosion and high durability, the Stainless Steel 316H Threaded Tee is used to connect and branch pipes. Sizes generally range from 1/4″ to 6″. It facilitates fluid flow in multiple directions efficiently.

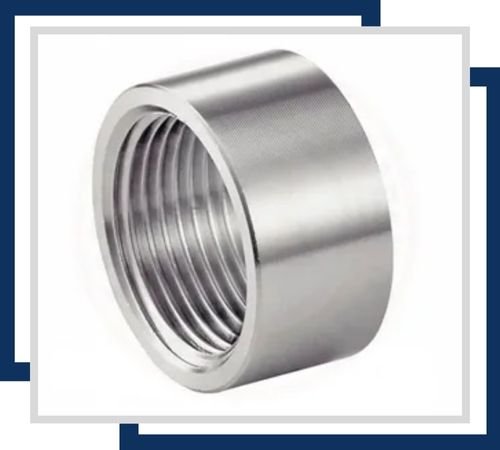

The Stainless Steel 316H Threaded Half Coupling provides strong corrosion resistance and is used to connect two sections of pipe. Available in sizes from 1/8″ to 4″, it offers easy installation and robust performance in various applications.

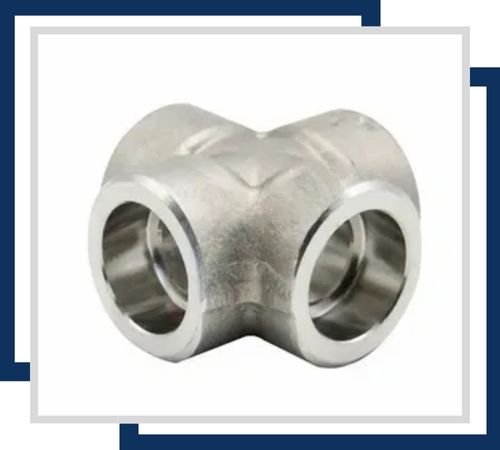

Known for its superior corrosion resistance, the Stainless Steel 316H Socket Weld Cross is used to connect multiple pipe lines. It comes in sizes from 1/4″ to 4″ and provides a reliable, high-strength connection suitable for complex piping systems.
The exceptional high-temperature performance of Stainless Steel 316H Forged Fittings makes them ideal for demanding applications such as power generation boilers, heat exchangers, and refinery piping systems. They are commonly specified for carrying superheated steam, hot oils, and various corrosive chemicals. You will find these robust components essential in the chemical processing, petrochemical, and oil and gas industries, where their reliability under thermal and mechanical stress ensures operational safety and long-term system integrity, minimizing downtime and maintenance needs.
