Welcome to Mbemba Stainless, your trusted partner in Kinshasa for industrial-grade fastening solutions. We take pride in supplying robust and reliable Stainless Steel 316H stud bolts, engineered to meet the most challenging demands. Our commitment goes beyond mere supply; we focus on understanding the unique needs of the Congolese industrial landscape, ensuring that our clients receive products that guarantee longevity, safety, and peak performance in their critical applications.
These stud bolts are crafted from an austenitic stainless steel known for its superior composition, which includes added chromium, nickel, and molybdenum for excellent corrosion resistance. The “H” designation indicates a higher carbon content, which provides enhanced high-temperature strength. This means they maintain their mechanical integrity, including impressive tensile strength and yield points, even under sustained exposure to extreme heat, preventing creep and failure.
| Fasteners Material Specification | ASTM A194, ASME SA193, UNS S31609 Bolts |
|---|---|
| Standard | DIN, UNI, ISO, JIS, GB, IS, BS, ASME, ANSI, ASTM and all International Standards |
| Fasteners/ Bolts Size | M2, M2.5, M3, M4, M5, M6, M8, M10, M12, M14, M16, M20, M24, M30, M36 to M160 |
| Length | 3 mm to 200 mm |
| Bolts, Studs Threads: | METRIC, BSW, BSF, UNC, UNF or as required |
| SS 316h Fasteners Standard: | ANSI – American National Standards Institute
|
| Source of raw materials | Tata Steel, JSPL, RINL, Usha Martin, Dhamm Steel, Mukund Steel etc. |
| SCOPE OF MANUFACTURE |
|
| Fasteners In Form of: | Hex, Square, Round, Threading as per Gauge Etc. |
| Head drive: | Phillips, Slotted, Phillips/Slot, Six-Lobe, etc |
| bolting Test Certificate: | Manufacturer Test Certificate as per EN 10204 / 3.1 |
| Fasteners finishing: | Zinc (yellow, white, blue, black), black oxide, Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Stainless steel: Passivated Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Stainless Steel, Mechanically Applied coating and some special one like DACROMET |
| Production process | M2-M24: Cold Froging, hot forging M24-M100, machining and CNC for Customized connecting element |
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
316H | Min | 0.04 | 0.04 | 0 | – | – | 16.0 | 2.00 | 10.0 | – |
max | 0.10 | 0.10 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | – |
Grade | Tensile Str (MPa) min | Yield Str 0.2% Proof (MPa) min | Elong (% in 50mm) min | Hardness | |
Rockwell B (HR B) max | Brinell (HB) max | ||||
316H | 515 | 205 | 40 | 95 | 217 |
Contact us to get a quick quote for your requirement.

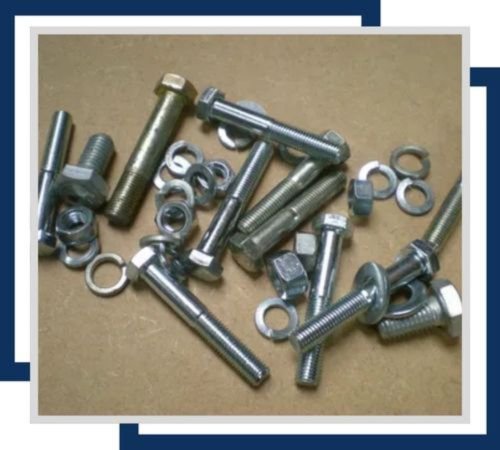

Stainless Steel 316H lag stud bolts offer high strength and superior corrosion resistance, ideal for high-temperature and harsh environments, ensuring durability and reliability in industrial, chemical, and marine applications.

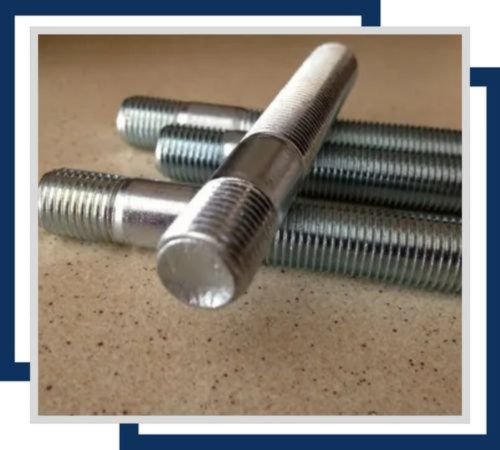

Stainless Steel 316H stud anchor bolts provide high strength and exceptional corrosion resistance, ideal for high-temperature and harsh environments, ensuring secure anchoring in industrial, chemical, and marine applications.

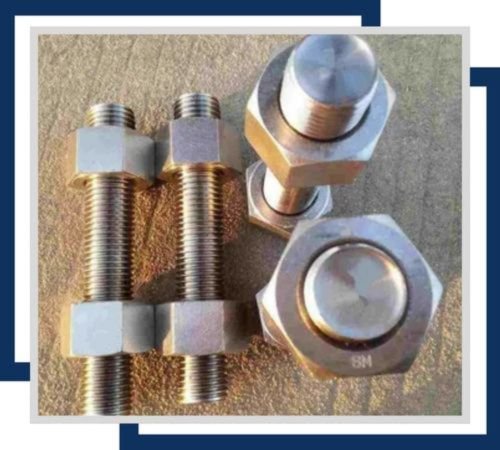

Stainless Steel 316H exhaust stud bolts offer high strength and corrosion resistance, ideal for high-temperature exhaust systems, ensuring durability and reliability in automotive, industrial, and marine applications.
We provide a wide range of certifications by supplying you with only the highest quality standards through our Stainless Steel 316H Stud Bolts. What’s included in our package is commercial invoices, packaging lists, fumigation certificates, heat treatment charts, quality assurance plans, and approved laboratory test reports. We also give you different types of test certificates specifically for your Stainless Steel 316H Stud Bolts. We assure 100 percent client satisfaction with confidence in products by providing them with the proper certifications. It includes MTC as per EN 10204/3.1b, PMI Test Certificate, and 100 percent radiography test report and third-party inspection certificates.
The exceptional heat resistance of Stainless Steel 316H stud bolts makes them indispensable in high-temperature environments. You will commonly find them securing critical components in power generation plants, petrochemical refineries, and heavy-duty industrial furnaces. They are also ideal for use in demanding construction projects, chemical processing equipment, and offshore installations where both strength and resistance to corrosive elements are non-negotiable for long-term structural integrity and safety.
