Mbemba Stainless is a reliable manufacturer and supplier located in Kinshasa, Congo, specializing in high-quality Stainless Steel 202 Flanges. These flanges are crafted from a durable austenitic chromium-nickel-manganese stainless steel, which offers impressive strength, toughness, and decent corrosion resistance—all at a competitive price. At Mbemba Stainless, they prioritize precision engineering, consistent quality, and compliance with international standards. Their Stainless Steel 202 flanges are perfect for a variety of industrial and structural applications, ensuring secure, leak-proof connections in piping systems across sectors like chemical processing, food production, construction, and general engineering.
The composition of Stainless Steel 202 Flanges includes iron, 16–18% chromium, 4–6% nickel, and 7.5–10% manganese, along with trace amounts of carbon and nitrogen. This blend results in a tensile strength of about 515 MPa, along with good yield strength, toughness, and ductility. They provide satisfactory corrosion resistance in mild environments and maintain solid mechanical properties even under moderate temperature and pressure. With their lower nickel content, they serve as a cost-effective yet robust alternative to 304 stainless steel.
| ASME/ANSI B16.5 | Welding Neck Flange, Slipon Flange, Blind Flange, High Hub Blind Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Ring Type Joint Flange |
| Pressure Class | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B16.47 | Welding Neck Flange, Blind Flange (Series A & B) |
| Pressure Class | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | (Orifice Flanges) Welding Neck Flange, Slipon Flange, Threaded Flange |
| Pressure Class | 300, 400, 600, 900, 1500, 2500 |
| BS 4504 SEC 3.1 | Welding Flange (111/134), Hubbed Slipon Flange (112), Hubbed Threaded Flange (113), Lapped Pipe End Flange (133), Plate Flange (101), Loose Plate Flange (102), Loose Plate with Weld-neck Flange (104), Blank Flange (105) |
| Pressure Class | PN 2.5 to PN 100 |
| Grade 202 | C | Mn | Si | P | S | Cr | Ni | N |
| max. | 0.15 | 7.50-10 | 1 | 0.060 | 0.030 | 17- 19 | 4-6 | 0.25 |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min |
| 202 | 515 | 275 | 40 |
Contact us to get a quick quote for your requirement.
Testing and certification of all Mbemba Stainless Flanges of Stainless Steel 202 will be done at all levels so that the material will be completely tested for performance and quality. The flange is tested as per international standards for mechanical, chemical, and dimensional inspections. With every order, CoC and MTR are provided with traceability against industry requirements. In response to specific requirements of a project, PMI, hardness tests, and other kinds of testing may be requested on an additional testing basis.

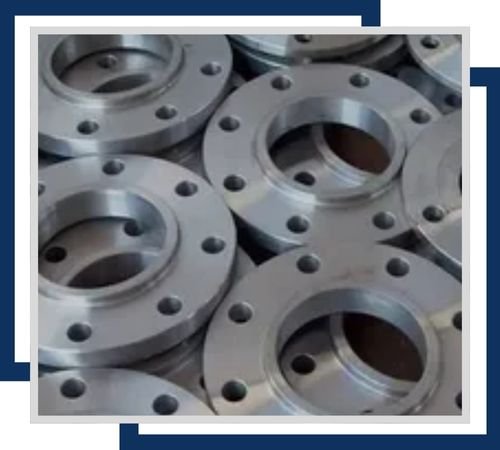

Stainless Steel 202 Threaded Flanges provide a secure, leak-proof connection with easy installation and removal. Ideal for applications requiring high corrosion resistance, they offer durability and strength in various industrial settings.

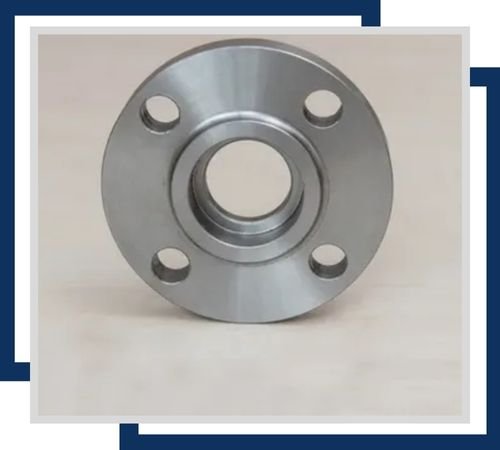

SS Socket 202 Weld Flanges feature a recessed socket for easy welding, providing a strong, corrosion-resistant connection. Ideal for high-pressure applications, they offer durability and reliable performance in challenging environments.

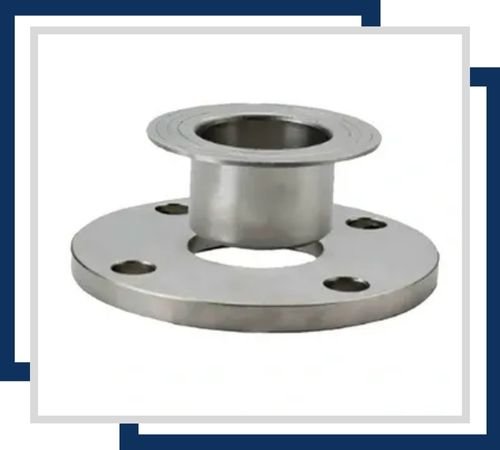

Stainless Steel 202 Lap Joint Flanges offer flexibility with easy alignment and disassembly. Their corrosion-resistant properties make them ideal for systems requiring frequent maintenance, ensuring durable and reliable connections.
Stainless Steel 202 flanges find their uses in the industrial sectors of oil and gas, chemicals, power generation, water purification, and construction. They are the pivotal hardware for interconnecting pipes, valves, pumps, and the other equipment of the piping systems. Their outstanding strength, workability, and resistance to oxidation qualify them for the high-temperature and moderately corrosive atmospheres. Moreover, they are implemented in food processing, the building of ships, and mechanical assemblies. Being economical, long-lasting, and dependable, Stainless Steel 202 flanges have been elected as the most suitable ones by the industry and the engineering disciplines that have led to a wide range of applications.
