Mbemba Stainless Kinshasa, Congo, is a reliable one-stop source that produces and distributes different types of Stainless Steel 304 flanges of the best quality. The company is committed to manufacturing precision-engineered items that mix the characteristics of strength, durability, and excellent corrosion resistance. By means of modern production works and a commitment to quality, Mbemba Stainless guarantees that every product unit is of a high international standard for durability and reliability. They are known for their Stainless Steel 304 flanges that accomplish excellent mechanical characteristics and have an extended service life, thus, a large customer base in industrial and commercial sectors both locally and internationally.
Stainless Steel 304 flanges are mostly made up of iron, chromium (18–20%), nickel (8–10.5%), and the rest are small amounts of carbon, manganese, silicon, phosphorus, and sulfur. The composition is balanced in such a way that the material attains excellent corrosion resistance, strength, and formability. In terms of their mechanical properties, the Stainless Steel 304 flanges have a tensile strength of about 515 MPa, a yield strength of around 205 MPa, good elongation, and toughness. Thanks to these properties, the flanges are fabricated from materials that find a wide range of applications in different environments that require the features of durability, weldability, and resistance to oxidation and chemical exposure.
| Standard | ASTM A182 / ASME SA182 |
| Dimensions | ANSI/ASME B16.5, B 16.47 A & B, B16.48, BS4504, BS 10, EN-1092, DIN |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges |
| Size | 1/2″ (15 NB) to 48″ (1200NB) |
| Class/Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
Mbemba Stainless follows high-quality standards for its Stainless Steel 304 Flanges. Every flange is thoroughly tested for dimensional checks, visual inspections, and non-destructive testing such as ultrasonic and magnetic particle tests. In addition to that, the flanges are even submitted to mechanical testing in terms of tensile, hardness, and impact tests to confirm their strength and durability. All the products have the relevant certificates. They also carry material test reports (MTRs) and meet international standards. This will provide reliable performance in various industrial applications.

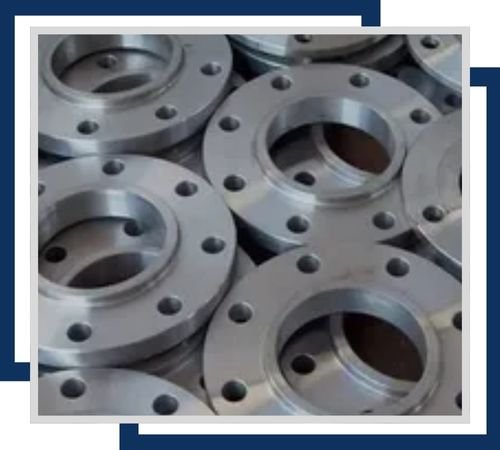

SS 304 long weld neck flanges are designed for high-stress applications, featuring a long tapered neck that provides a strong, continuous weld connection. They offer excellent strength and resistance to leakage.

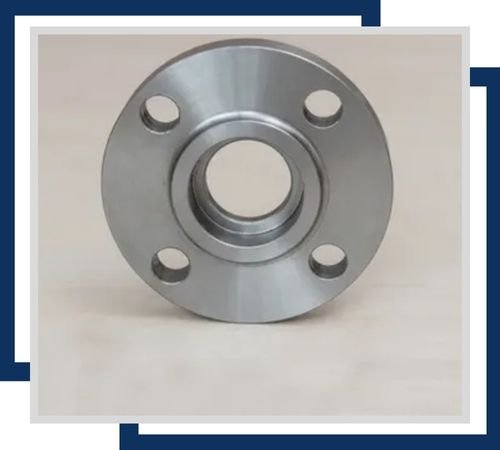

SS 304 lap joint flanges are versatile components designed for ease of assembly and disassembly. They feature a loose fit, allowing for easy alignment and maintenance, with excellent resistance to corrosion.
SS 304 reducing flanges are used to connect pipes of different diameters, providing a smooth transition between sizes. They ensure a secure, leak-proof joint while offering strong corrosion resistance and durability.
Firstly, Stainless Steel 304 flanges have extensive applications in the industrial fields of oil and gas, petrochemical, power generation, food processing, and water treatment. They serve the purpose of piping systems that include pipes, valves, and pumps with an assured tightness and non-leakage condition in operations. Because of their superior corrosion resistance, these flanges are the most appropriate choice in marine and chemical sectors while their aesthetic value gives them the opportunity to be used in architectural applications. Besides that, they are suitable for high-pressure and high-temperature systems. Because of their strength, versatility, and low maintenance, Stainless Steel 304 flanges are the popular choice of the majority of industrial applications.
