Mbemba Stainless stands out as a top-notch manufacturer and supplier of **Stainless Steel 317 Sheet and Plates** in Kinshasa, Congo. They pride themselves on delivering high-quality products that are built to withstand corrosion, offer strength, and ensure durability. These sheets and plates are made from molybdenum-enriched austenitic stainless steel, which significantly boosts their resistance to pitting, crevice corrosion, and harsh chemical environments. With a commitment to precision manufacturing and rigorous quality control, Mbemba Stainless produces Stainless Steel 317 Sheet and Plates that adhere to international standards. These materials find their place in various industries, including chemical, petrochemical, marine, and pharmaceutical, where they consistently deliver reliable performance and longevity even in tough operating conditions.
**Stainless Steel 317 Sheet and Plates** are made up of chromium (18–20%), nickel (11–14%), molybdenum (3–4%), carbon (≤0.08%), along with manganese, silicon, phosphorus, and sulfur. This type of austenitic stainless steel is known for its outstanding corrosion resistance, especially in acidic and chloride-rich environments. In terms of mechanical properties, it boasts a tensile strength of about 515 MPa and a yield strength of around 205 MPa, along with good elongation, toughness, and stability at high temperatures. The addition of molybdenum enhances its resistance to pitting and crevice corrosion, while the alloy remains highly weldable and formable for a variety of applications.
Specifications: ASTM A240 / ASME SA240
Dimensions: ASTM, ASME, and API.
Width: 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Thickness:4mm-100mm
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Surface Finish: 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, chequered, embossed, hairline, sand blast, Brush, etching, Hot rolled plate (HR), Cold rolled sheet (CR), SATIN (Met with Plastic Coated) etc
Form: Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
|
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
Fe |
|
SS 317 |
0.08 max |
2.0 max |
1.0 max |
0.045 max |
0.030 max |
18.00 – 20.00 |
3.00 – 4.00 |
11.00 – 15.00 |
57.845 min |
|
Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
|
7.9 g/cm3 |
1400 °C (2550 °F) |
Psi – 75000, MPa – 515 |
Psi – 30000, MPa – 205 |
35 % |
Contact us to get a quick quote for your requirement.
Stainless Steel 317 Hot Rolled Sheet and Plates provide excellent strength along with excellent corrosion resistance for high-temperature and aggressive chemical environments. They are used in industrial applications requiring durability and toughness.

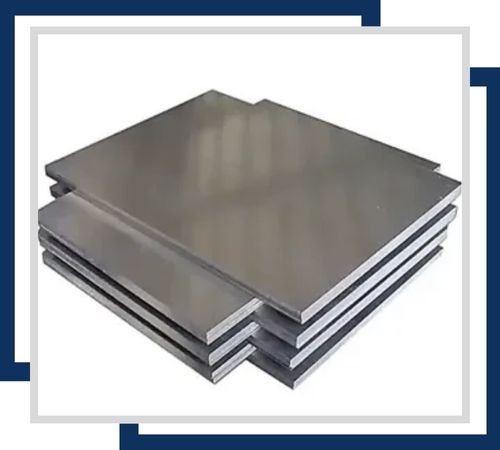

Stainless Steel 317 Cold Rolled Sheet and Plates provide a smooth surface finish and precise dimensions, suitable for any applications in chemical, marine, pharmaceutical industries with high requirements of superior corrosion resistance and aesthetic quality.

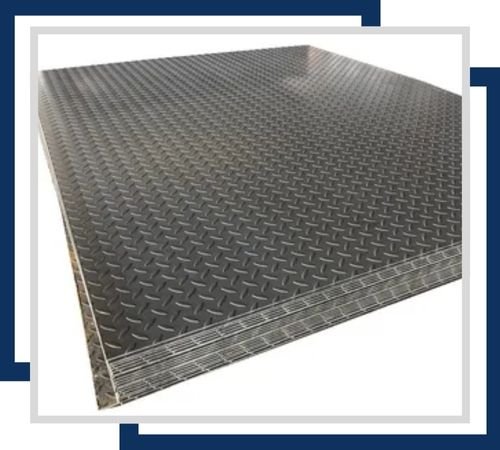

Stainless Steel 317 Chequered Sheet and Plates are used in slip-resistant and long-lasting applications like flooring and stair treads. They are excellent corrosion-resistant materials, which can be used for both industrial and decorative purposes.
Stainless Steel 317 Perforated Sheet and Plates are used for filtration, ventilation, and architecture. It incorporates strength with the corrosion resistance capabilities of the plates along with useful perforations; hence, ideal for custom design and structural purposes in aggressive applications.

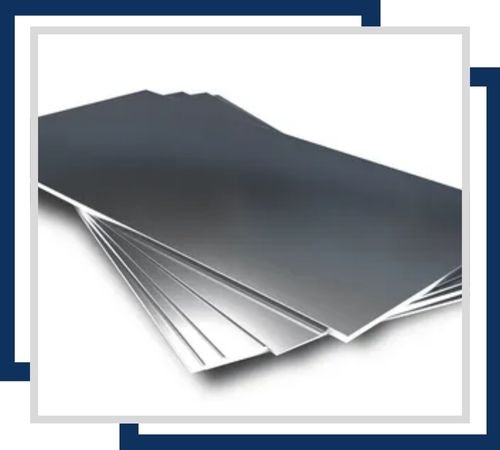

Stainless Steel 317 Shim Sheet and Plates are deployed for precision spacing and alignment within machinery and equipment. It shows high strength as well as resistant to corrosion features, thus sustaining stability and endurance in critical operations.
Stainless Steel 317 Polished Sheet and Plates have a very high-quality, reflective finish which is suitable for decorative and architectural applications. These have excellent corrosion resistance and are used in the environments where the appearance and durability are key requirements.
You’ll find **Stainless Steel 317 Sheet and Plates** being widely utilized in **chemical processing equipment, petrochemical plants, marine structures, pharmaceutical machinery, food processing units, and storage tanks**. Their exceptional resistance to corrosion, pitting, and scaling makes them perfect for heat exchangers, pressure vessels, piping systems, and reactors that come into contact with aggressive chemicals. Additionally, they are used in architectural and industrial settings where strength and durability are paramount. Stainless Steel 317 Sheet and Plates ensure long-term reliability, structural integrity, and outstanding performance in demanding environments.
