Home > Sheet and Plates > Stainless Steel 347/347H Sheet and Plates
Mbemba Stainless stands out as a top-notch manufacturer and supplier of **Stainless Steel 347/347H Sheet and Plates** right in the heart of Kinshasa, Congo. They pride themselves on delivering high-quality products that are designed to resist corrosion, withstand high temperatures, and last for the long haul. These sheets and plates are specially stabilized with niobium, which helps prevent intergranular corrosion and keeps their structural integrity intact during welding or thermal cycling. With a commitment to precise manufacturing and strict quality standards, Mbemba Stainless ensures that their products meet international specifications. You’ll find **Stainless Steel 347/347H Sheet and Plates** being put to good use in industries like petrochemical, power generation, aerospace, and chemicals, where they deliver reliable performance even in the toughest, high-temperature conditions.
When it comes to composition, **Stainless Steel 347/347H Sheet and Plates** are made up of chromium (17–19%), nickel (9–13%), niobium (columbium), carbon (0.04–0.10% for 347H, ≤0.08% for 347), along with manganese, silicon, phosphorus, and sulfur. The niobium stabilization is key, as it prevents carbide precipitation during welding or heat exposure, providing excellent resistance to intergranular corrosion. These austenitic sheets and plates boast a tensile strength of about 515 MPa and a yield strength of around 205 MPa, along with impressive creep resistance, toughness, and oxidation resistance at high temperatures, making them perfect for critical applications that require high heat.
Stainless Steel Sheets and Plates Specification : ASTM A240 / ASME SA240
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
| C | Cr | Mn | Ni | P | S | Si | Cb/Ta | |
|---|---|---|---|---|---|---|---|---|
| 347 | 0.08 max | min: 17.0 max: 20.0 | 2.0 max | min: 9.0 max: 13.0 | 0.04 max | 0.30 max | 0.75 max | min:10x C max: 1.0 |
| 347H | min: 0.04 max: 0.10 | min: 17.0 max: 20.0 | 2.0 max | min: 9.0 max: 13.0 | 0.03 max | 0.30 max | 0.75 max | min:10x C max: 1.0 |
| Grade | Tensile Strength ksi (MPa) min | Yield Strength 0.2% ksi offset ksi (MPa) min | Elongation (% in 50mm) min | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
|---|---|---|---|---|---|
| 347/347H | 75 (515) | 30 (205) | 40 | 201 | 95 |
Contact us to get a quick quote for your requirement.

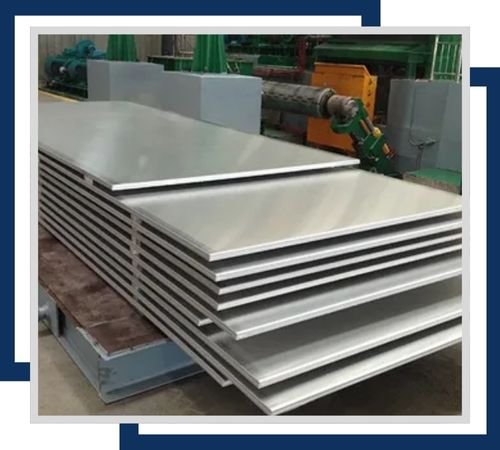

Known for excellent corrosion resistance, these sheets are produced through hot rolling. They are available in thicknesses from 3mm to 50mm and widths up to 2000mm, providing durability in high-temperature environments and are used in heavy-duty applications

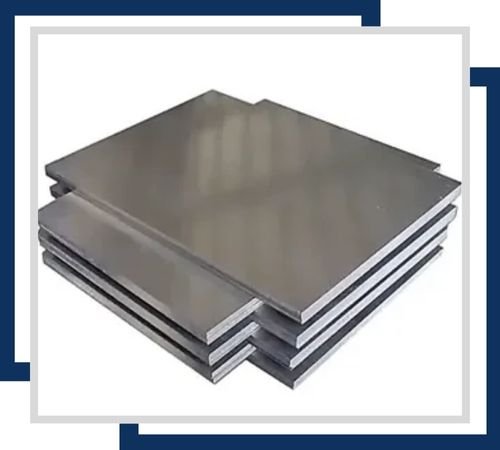

These plates are cold-rolled for a smooth finish and have superior corrosion resistance. They are available in thicknesses ranging from 0.5mm to 12mm and widths up to 1500mm, which is ideal for precision applications and structural components.

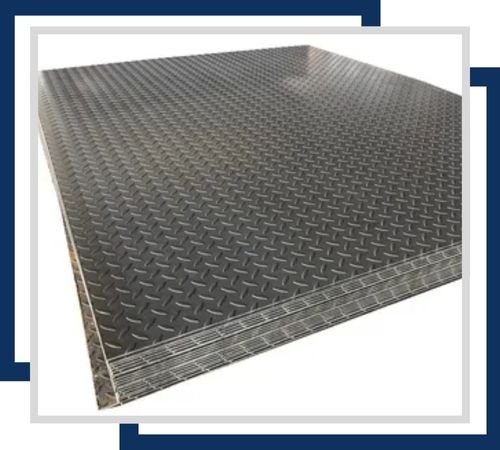

These plates offer excellent corrosion resistance, with a patterned surface for better traction and safety. They are available in various thicknesses, from 1.5mm to 6mm, and up to 1500mm in width, which makes them useful for flooring and industrial applications.

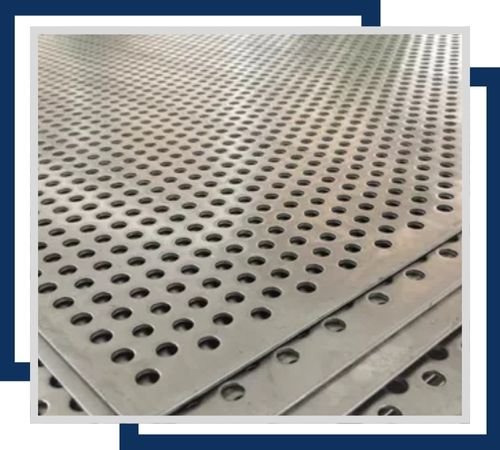

Offering high corrosion resistance, the sheets are perforated in a variety of hole patterns to achieve ventilation and aesthetics. Typical thicknesses vary between 0.5mm to 6mm, while the width may be up to 2000mm for filter applications and decorative panels.

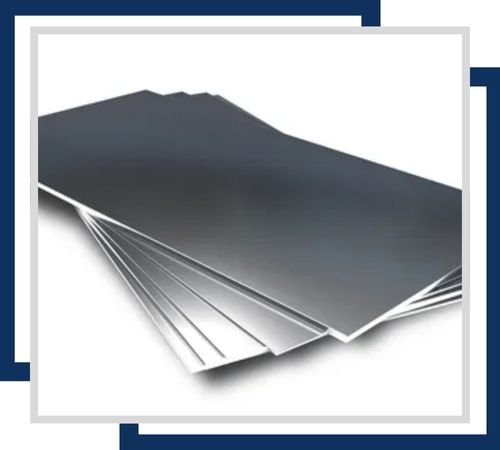

The shim sheets have excellent corrosion resistance. Thickness can range from 0.1mm to 2mm, width up to 1000mm, and are precision cut for exact measurements. They are used where fine adjustments are necessary.

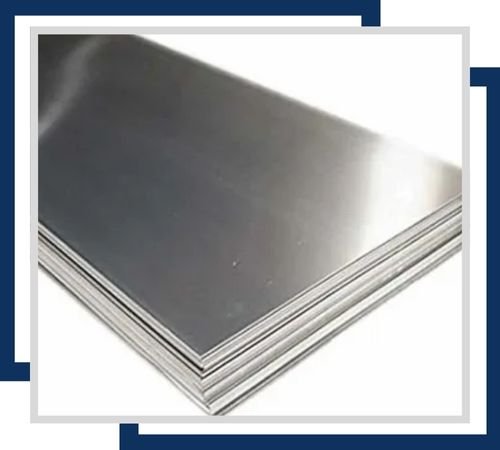

These plates feature outstanding corrosion resistance, and have a polished surface for enhanced appearance and cleanliness. They are available in widely used thicknesses that range from 3mm to 25mm and widths up to 2000mm. They find applications mainly in decorative and sanitary use.
Mbemba Stainless will provide customers with an unmatched customer experience based on complete documentation about our superior Stainless Steel 347 and 347H sheets and plates. Essential documents including commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-approved lab test reports shall be provided from time to time by us in our products that ascertain the genuity and exceptional quality of products supplied to the valuable customers. Our Stainless Steel 347/347H sheets and plates also include a test certificate: MTC as per EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third Party Inspection Certificates, in regard to our strict quality commitment toward our valued clients.
You’ll find **Stainless Steel 347/347H Sheet and Plates** being widely utilized across **chemical processing, petrochemical, power generation, marine, and aerospace industries**. Their remarkable high-temperature strength and corrosion resistance make them the go-to choice for heat exchangers, furnace parts, boiler components, superheaters, and pressure vessels. They’re also commonly used in piping systems, exhaust manifolds, and industrial equipment that face cyclic heating and harsh environments. With **Stainless Steel 347/347H Sheet and Plates**, you can count on long-lasting durability, structural stability, and dependable performance, even in the most demanding thermal, mechanical, and corrosive settings.
